Mjerni instrument DVB-T/T2/C, DVB-S/S2, spectrum i optical tester
Mjerni instrument DVB-T/T2/C, DVB-S/S2, spectrum i optical tester
Kataloški broj: ST6986
Dostupnost:
Akcija
(473,75)
473,75 €
U cijenu je uključen PDV
Najniža cijena primijenjena zadnjih 30 dana:
473,75 €
| Kataloški broj: | ST6986 |
| Šifra artikla: | 0910074 |
| Barkod: | 1000000022995 |
| Akcija: | Artikl je na akciji! |

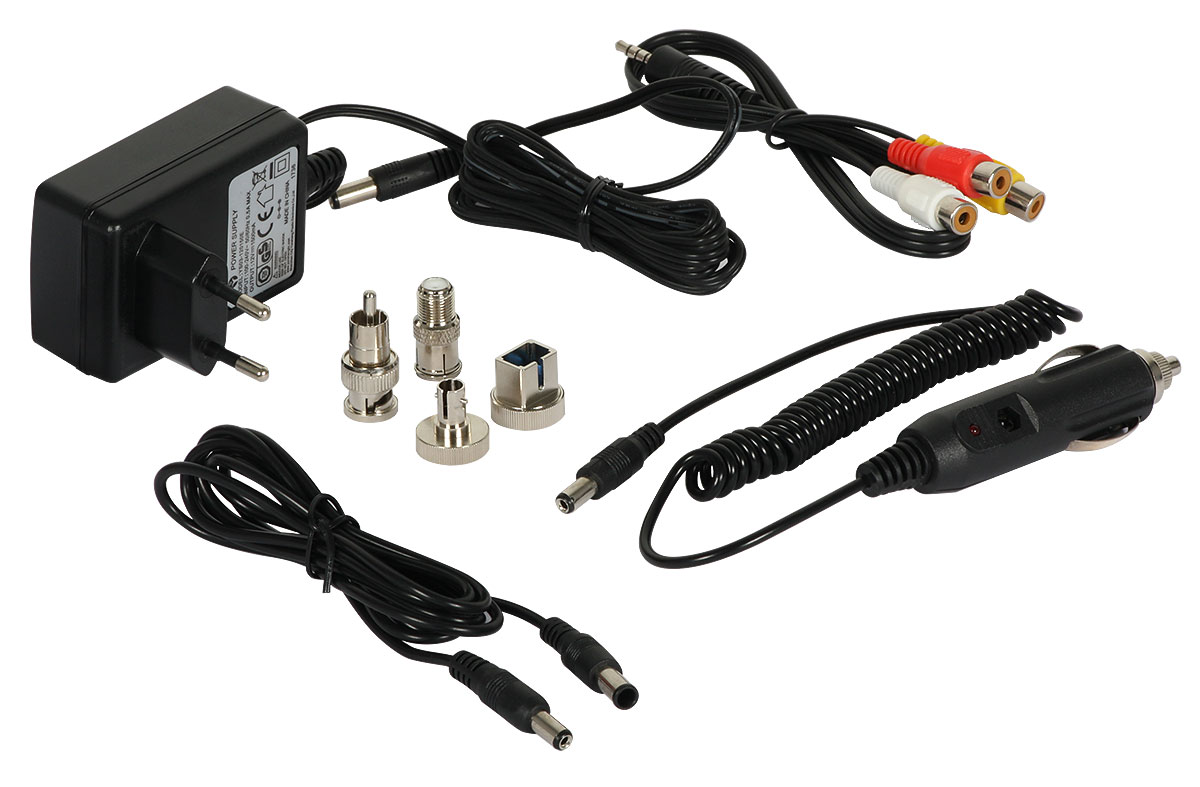

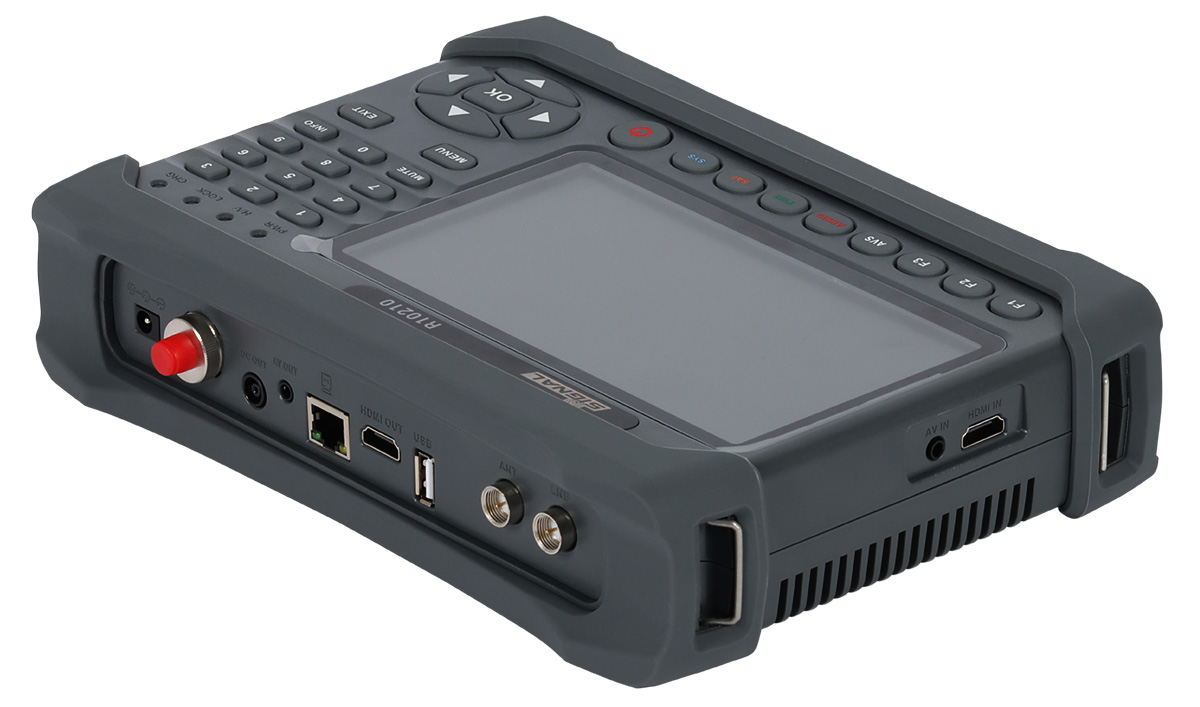

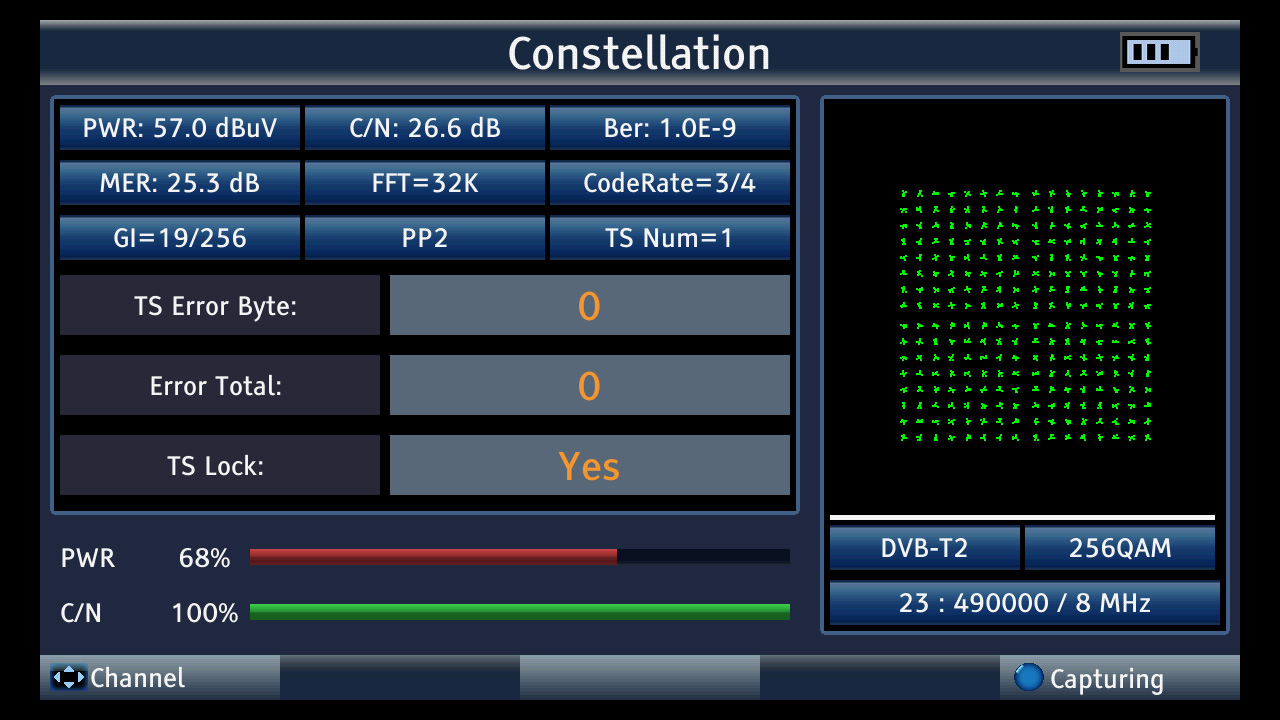

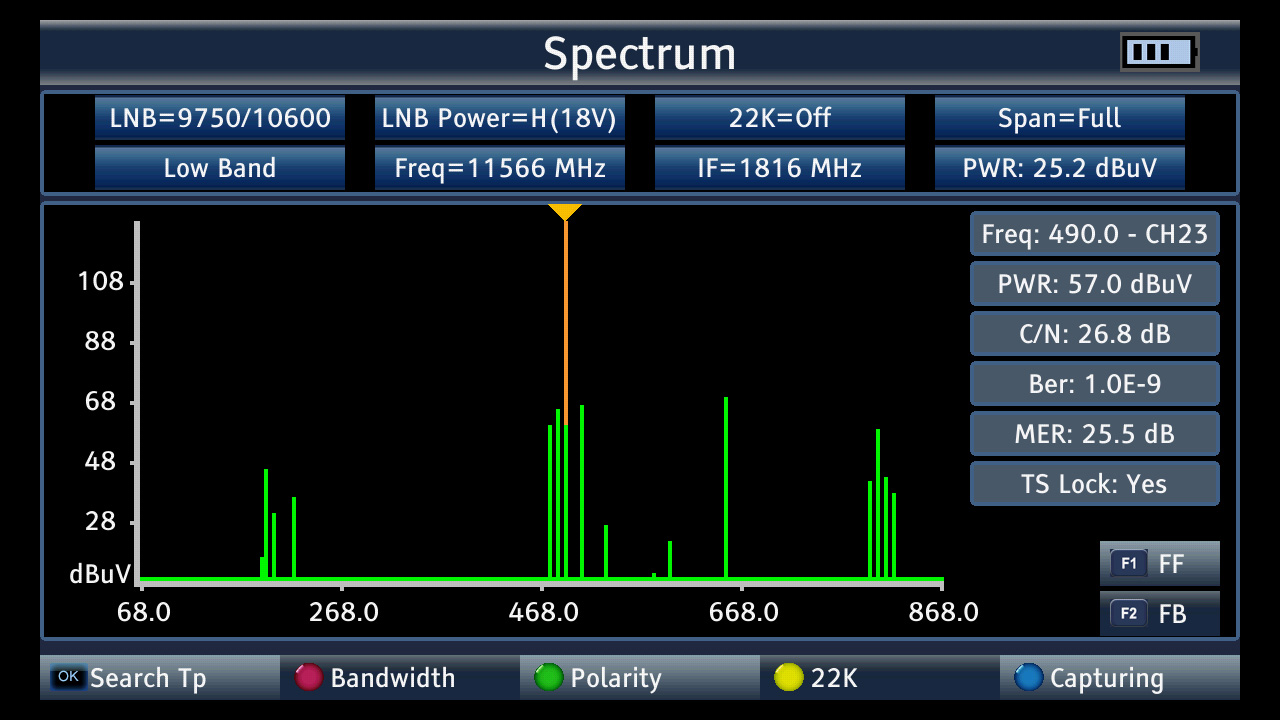

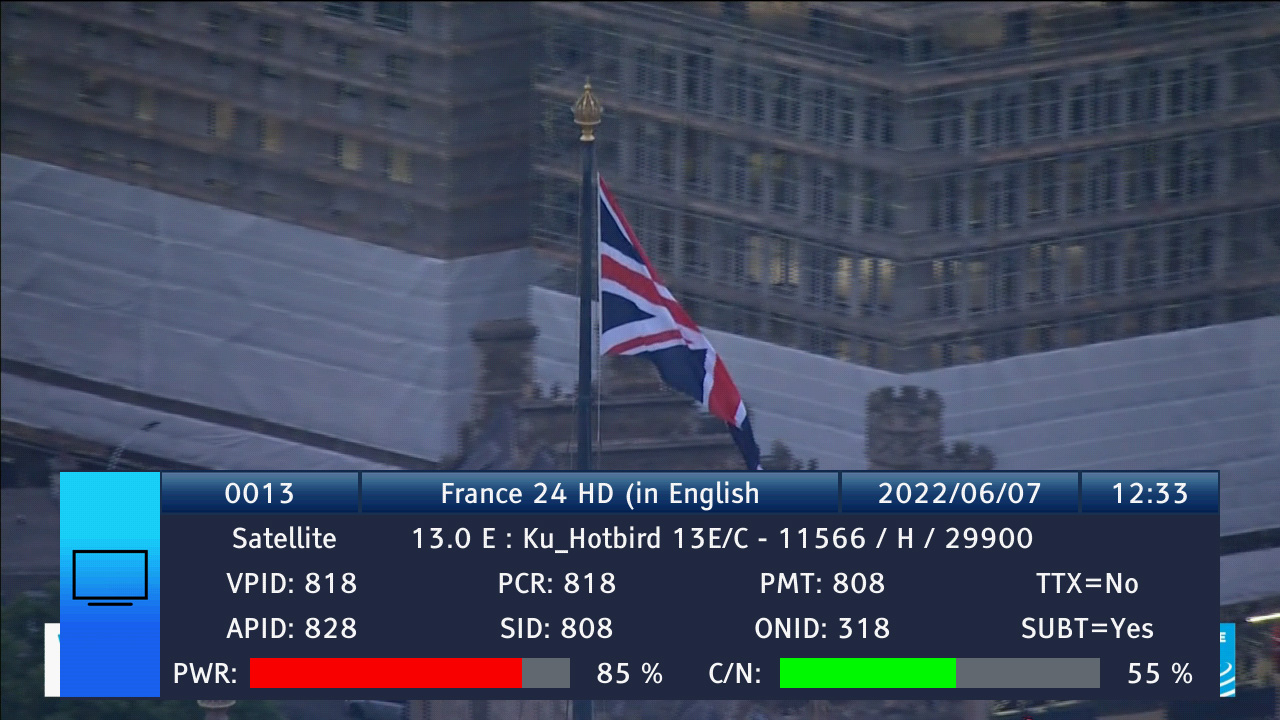

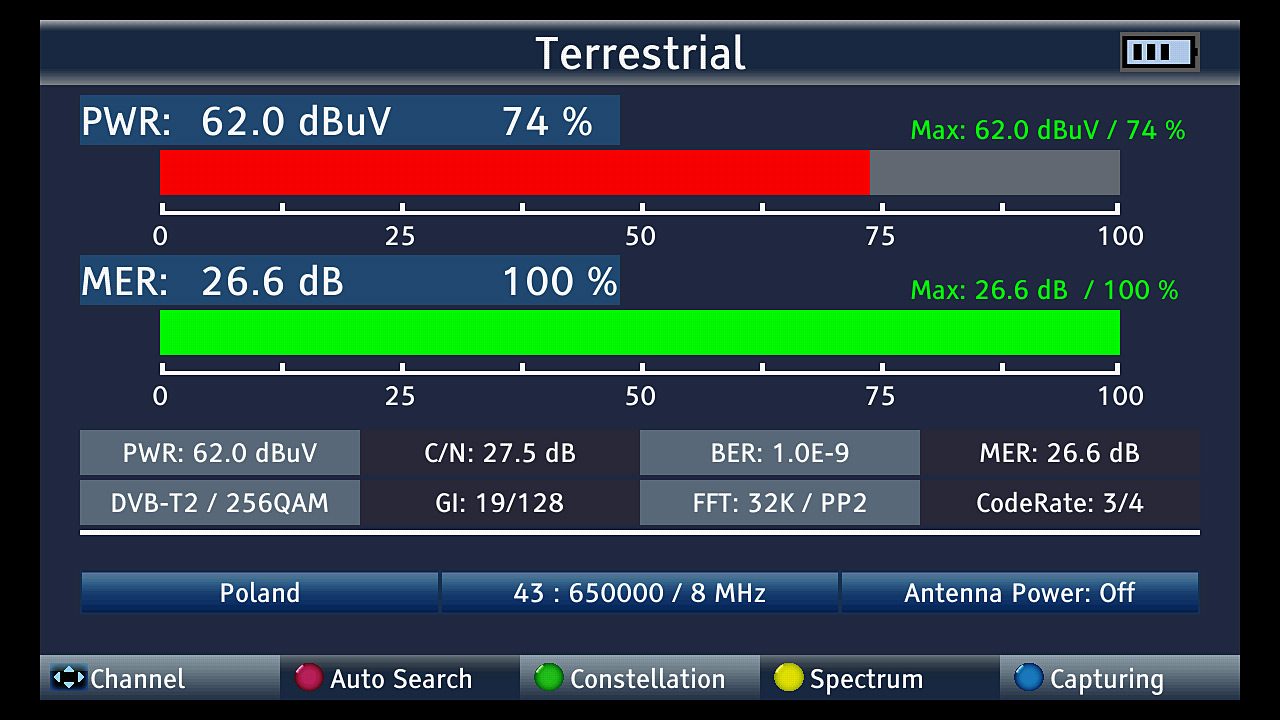

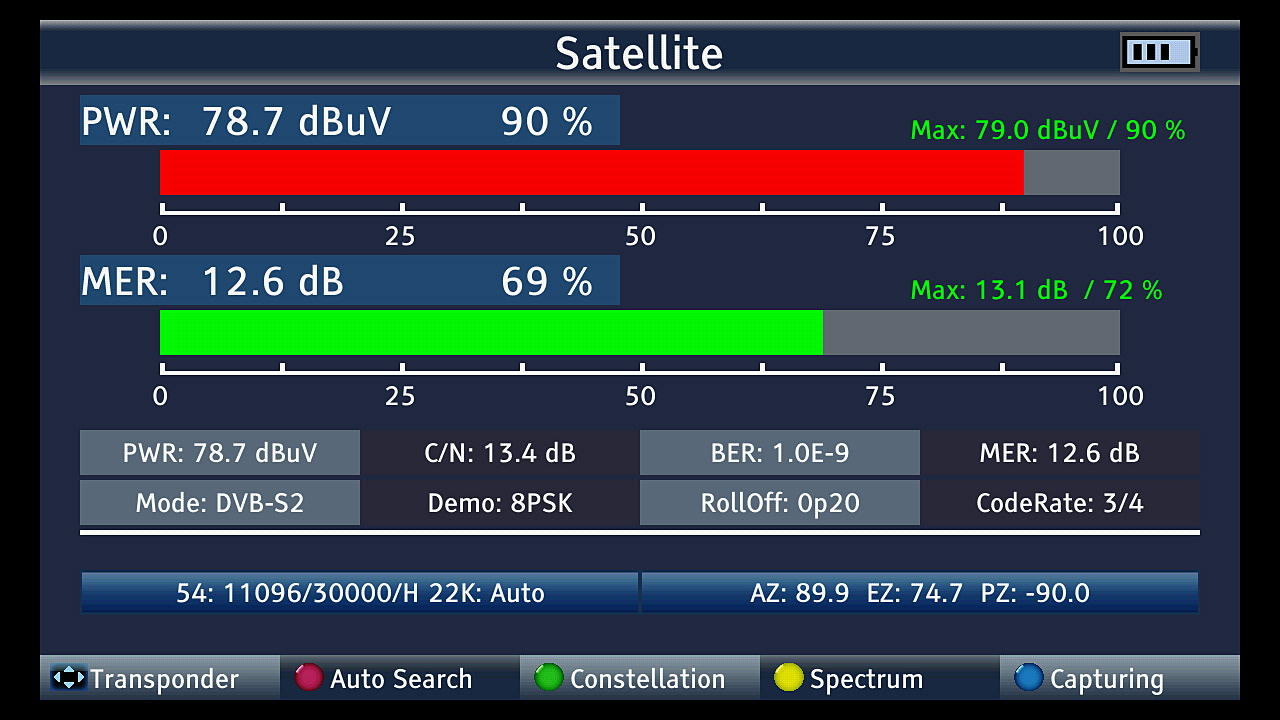

| Opis: | The combo meter ST-6986 measures DVB-S/DVB-S2 (HD) satellite signal, DVB-T/T2 (HD) terrestrial TV signal in HEVC 10 Bit compression and DVB-C cable signal. • Measures DVB-T/T2/C and DVB-S/S2 signals • Supports DVB-T2 with H.265/HEVC 10 bit • Views the received channel on the 7" LCD display • Built-in video decoder: MPEG-2/H.264/H.265 • DiSEqC support: 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband • USB connector (possibility to take a screenshot of the current measurement) • Signal strength and quality indication • Optical power meter • Measurement of all necessary signal parameters such as: Signal level expressed in dBµV, C/N, BER, MER • Signal spectrum analyzer • Constellation chart • Satellite finding beeper (can be turned off) • Car charger included • Li-On 7.4 V/5000 mAh battery • Editable satellite, transponder, frequency • Short-circuit protection in satellite path (LNB) Signal meter ST-6986 enables the user to measure satellite DVB-S/DVB-S2 (HD), terrestrial DVB-T/T2 (HD) in HEVC 10 Bit compression, and cable DVB-C. It has a 7” color LCD TFT display. The meter is ideal for setup of every TV and SAT TV antenna system. The applications include positioning of satellite dishes and terrestrial antennas, tuning of filters, adjustment of settings of amplifiers. The meter has a built-in receiver that enables constant monitoring of the set channel and spectrum analyzer. The monitoring of the tested channels and intuitive operation accelerate installation work. An unquestionable advantage of the device is a user-friendly menu, making easier the work of users without much experience in this field. In addition to that, an external HDMI output can feed the received channel to a TV/monitor screen via a cable. The device allows the user to measure such parameters as signal level expressed in dBµV, C/N and MER parameters. By connecting a fiber optic cable to the optical port of the device, the optical power of the signal is measured for a selected wavelength. Car charger included. The 10-bit HEVC video codec is a high-performance video codec that uses 10 bits to represent the color of each pixel instead of the standard 8 bits. Such information provides more accurate color reproduction and image quality, but also requires more bandwidth. DVB-T2 digital terrestrial television provides for the use of 10-bit coding. The R10210 meter's embedded 10-bit HEVC video decoder allows viewing channels in both 8-bit and 10-bit HEVC standards. Key features: measures DVB-T/T2/C and DVB-S/S2 signals supports DVB-T2 with H.265/HEVC 10 bit views the received channel on the 7" LCD display built-in video decoder: MPEG-2/H.264/H.265 DiSEqC support: 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband USB port (snapshots of the current measurement possible) signal strength and quality indication percentage signal quality indication optical power meter measurement of all necessary signal parameters such as: signal level expressed in dBµV, C/N, BER, MER signal spectrum analyzer constellation chart satellite finding beeper (can be turned off) car charger included Li-On 7.4 V/5000 mAh battery editable satellite, transponder, frequency short-circuit protection in satellite path (LNB) |
