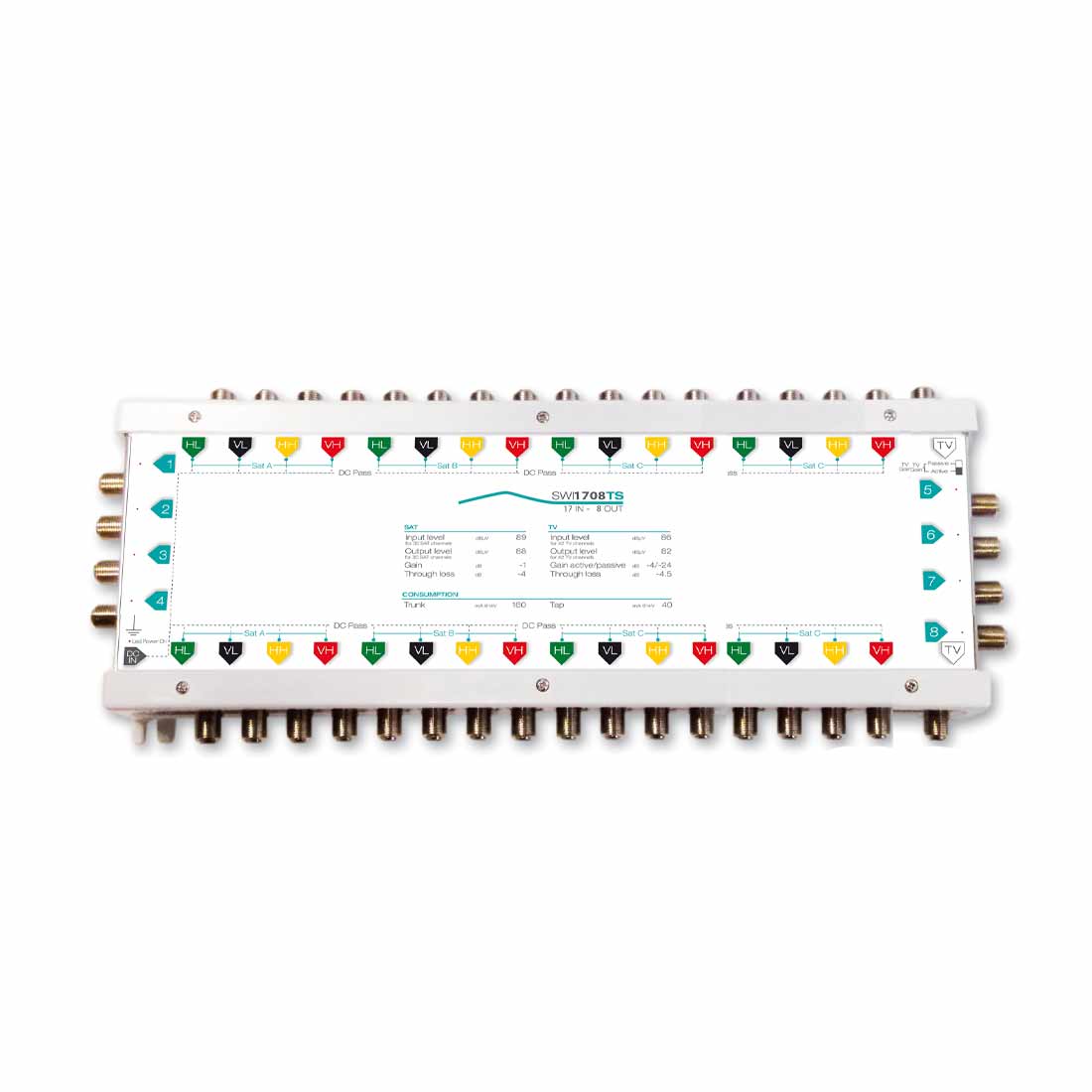

Kaskadni multiswitch, 16xMF/1xZEM, 8 izlaza, aktivni/pasivni
Kataloški broj: SWI1708TS
Dostupnost:
222,06 €
U cijenu je uključen PDV
| Kataloški broj: | SWI1708TS |
| Šifra artikla: | 0504276 |
| Barkod: | 8016978097166 |
| Opis: | Code 287368 17 Inputs 17-input cascadable multiswitch with 8 output taps; DIP switch to select active and passive TV gain. Technical chars Satellite band up to 2300MHz. High output level to cover long cable distances(60m with 6.7mm cable). Each port has an LED to show correct reception of DiSEqC commands. Return channel included when TV gain is passive (5-65MHz). When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs. PSU1340TS external power supply (13V, 4A) with Male Jack connector (2.1x5.5x12; inside positive, outside negative) not included in the package; to optimise installation space and reduce maintenance time. Small size due to matrix switching system, with connectors on both sides. Easy to install due to standard input colouring SWI1708TS Code 287368 Inputs 16 SAT, 1 TV Outputs 16 SAT, 1 TV Taps 8 SAT Bandwidth MHz 950-2300 Gain dB -4/0 Max Output level dBµV 100 Insertion loss dB -1/-3 TV TV bandwidth MHz Active TV: 47-862; Passive TV: 5-862 Gain (Active) dB -2 Gain (Passive) dB -22 Max Output level dBµV Active: 95 Insertion loss dB -4/-5 Return channel Bandwidth MHz Passive TV: 5-65 Consumption Tap mA 50 Absorption mA Active TV: 160@13V; Passive TV: entirely fed by the receiver Maximum power supply current SAT mA Passive TV: 4000; Active TV: 3840 Specifications Operating temperature °C -10 to +55 SAT-SAT Isolation dB >30 Dimensions and packaging Pieces 1 EAN code 8016978097166 Packaging dimensions mm 330 x 245 x 50 Product dimensions mm 120 x 310 x 40 Packaging weight kg 0.8 |
