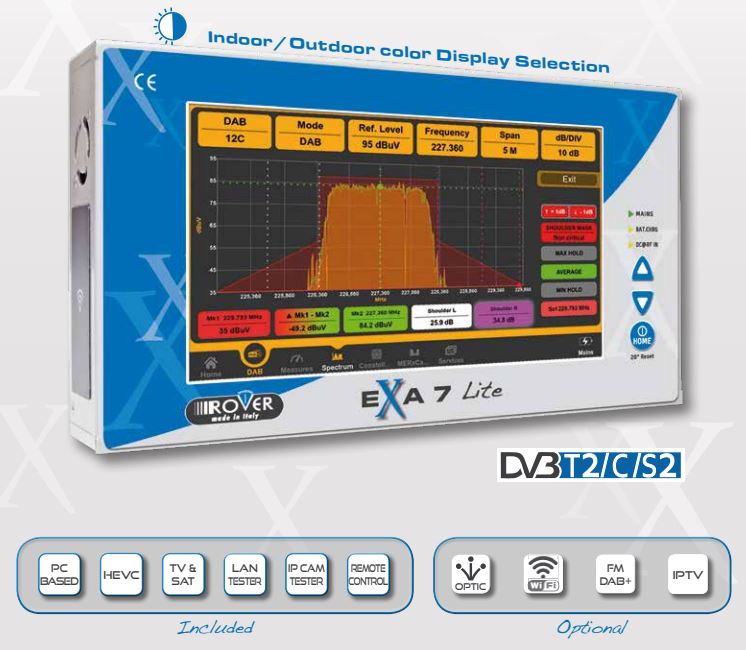

Mjerni instrument Rover radio, TV, SAT analyzer 30-2700MHz
Mjerni instrument Rover radio, TV, SAT analyzer 30-2700MHz
Kataloški broj: EXA7LITE
Dostupnost:
2.412,50 €
U cijenu je uključen PDV
| Kataloški broj: | EXA7LITE |
| Šifra artikla: | 0910073 |
| Opis: | SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES • Frequency Range: 30-2700 MHz. • Frequency Resolution: TV & CATV: 25 KHz; SAT: 5 MHz. • Power Range Meas.: from 5 to 120 dBµV. • Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER. • Measurement Resolution: 0.1 dB. • Level Measurement Accuracy: 1 dB typ. (2 dB max.) • Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz @ -3 dB. • Constellation: for TV/CATV and SAT signals. • Spectrum: Fast spectrum, Max Hold and spectrum memorization with real time compare function. • Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position. • Echoes, Pre-echoes, Micro-echoes: Representation in real Time. • Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL. • Digital Pictures: MPEG2-4 SD & HD, HEVC pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen. • Audio: AAC, DOLBY AC3 DD+. GENERAL SPECIFICATIONS • 7” TFT TOUCH display: 16:9 high resolution and high brightness. Capacitive industrial Display. • DC voltage at RF input: 5 - 12 - 18 - 24 V, DC DiSEqC, SCR & dCSS commands. • PC Interface: USB-B. • Front-Panel: Alpha numeric keypad + Multifunction Encoder. • Power Save: TFT backlight timer, brightness adj. • PC Management: WEB Browser (no special SW required). • Power Supply: Supplied certified external PSU 220 VAC - 12 Vdc 3A. • Battery: Integrated lithium polymers from 2 to 4 hours of duration (depending on the function) and BATTERY TEST function. • Battery door: removable battery door for quick and easy replacement without the need for assistance • Weight: only 1,8 Kg. • Size: H 27,0 x W 15,5 x D 4,0 cm (meter only). • Aluminium and Steel Housing. • Bag with padding and belt for carry and usage. INCLUDED MAIN FEATURES • PC Based management SW. • HEVC Pictures. • TV & SAT Measurements. • LAN Tester. • IP Camera Tester. • LAN Remote Control. |
