Kataloški broj:	P80APN
Šifra artikla:	0201094
Barkod:	8016978069842

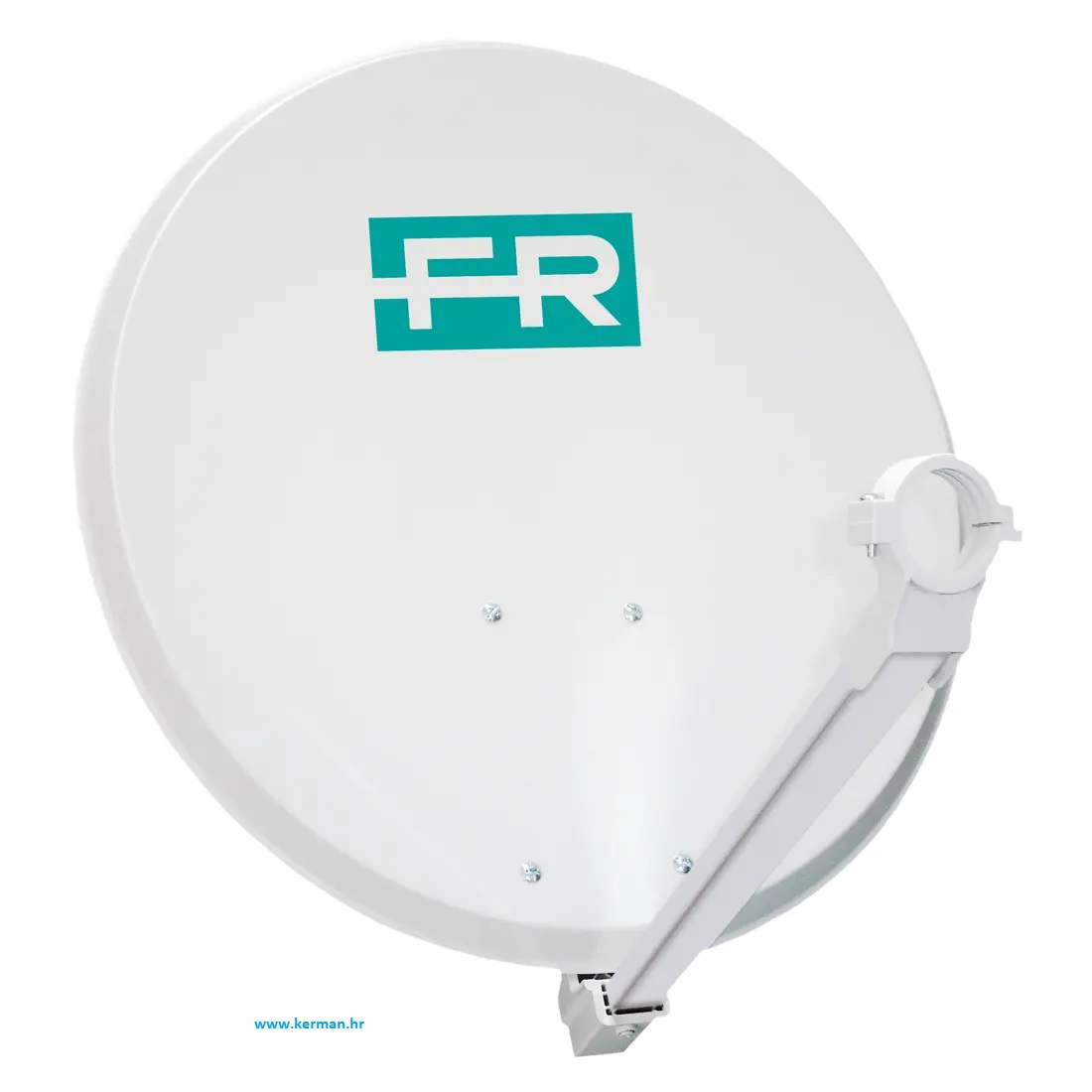

Opis:	Steel offset dish with 80 cm diameter and included mounting kit Technical chars Disc holder made of composite material. Mounting kit ZO80SC (cod. 287404) included in the package. Dual focus mount available as an accessory. Maximum reception quality for all high-definition programmes. Single package. P80APN Frequency range MHz 10700-12750 Dimensions cm 81 x 75 Offset angle ° 22.75 Efficiency % ? 75 Fornt back ratio dB 0.66 Elevation angle ° 0/50 Mast clamp mm 30-60 Wind load 120km/h 729N/m? kg (N) 55.2 (541.3) Bracket material Composite Diameter cm 80 Material Steel Colour Light grey Dual feed DF80SC code 287422 Mounting kit ZO80SC code 287404 included Gain Gain 10.7 GHz dB 37.6 Gain 11.7GHz dB 38.2 Gain 12.7GHz dB 38.6 Dimensions and packaging Pieces 1 EAN code 8016978069842 Packaging dimensions mm 800 x 1005 x 105 Product dimensions mm 836 x 930 x 95 Packaging weight kg 3.68 Net Weight kg 5.1 Weight kg 5.1

Kategorije

Satelitska antena Fe, promjera 80cm Fracarro, RAL7035
