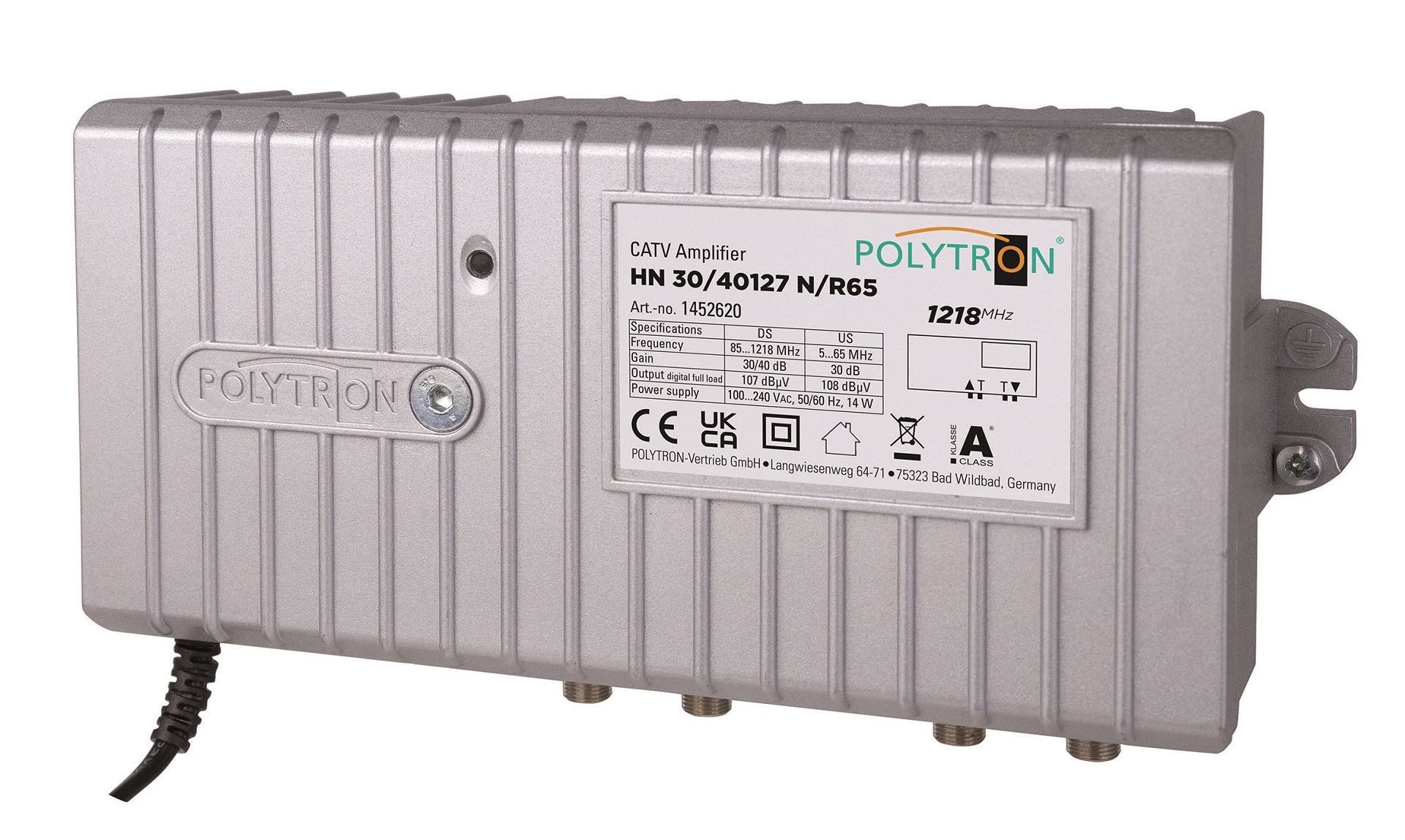

Distribucijsko pojačalo 40dB/127dBµV/230Vac
Distribucijsko pojačalo 40dB/127dBµV/230Vac
Kataloški broj: HN3040127N
Dostupnost:
242,62 €
U cijenu je uključen PDV
| Kataloški broj: | HN3040127N |
| Šifra artikla: | 0404080 |
| Barkod: | 4250238516415 |

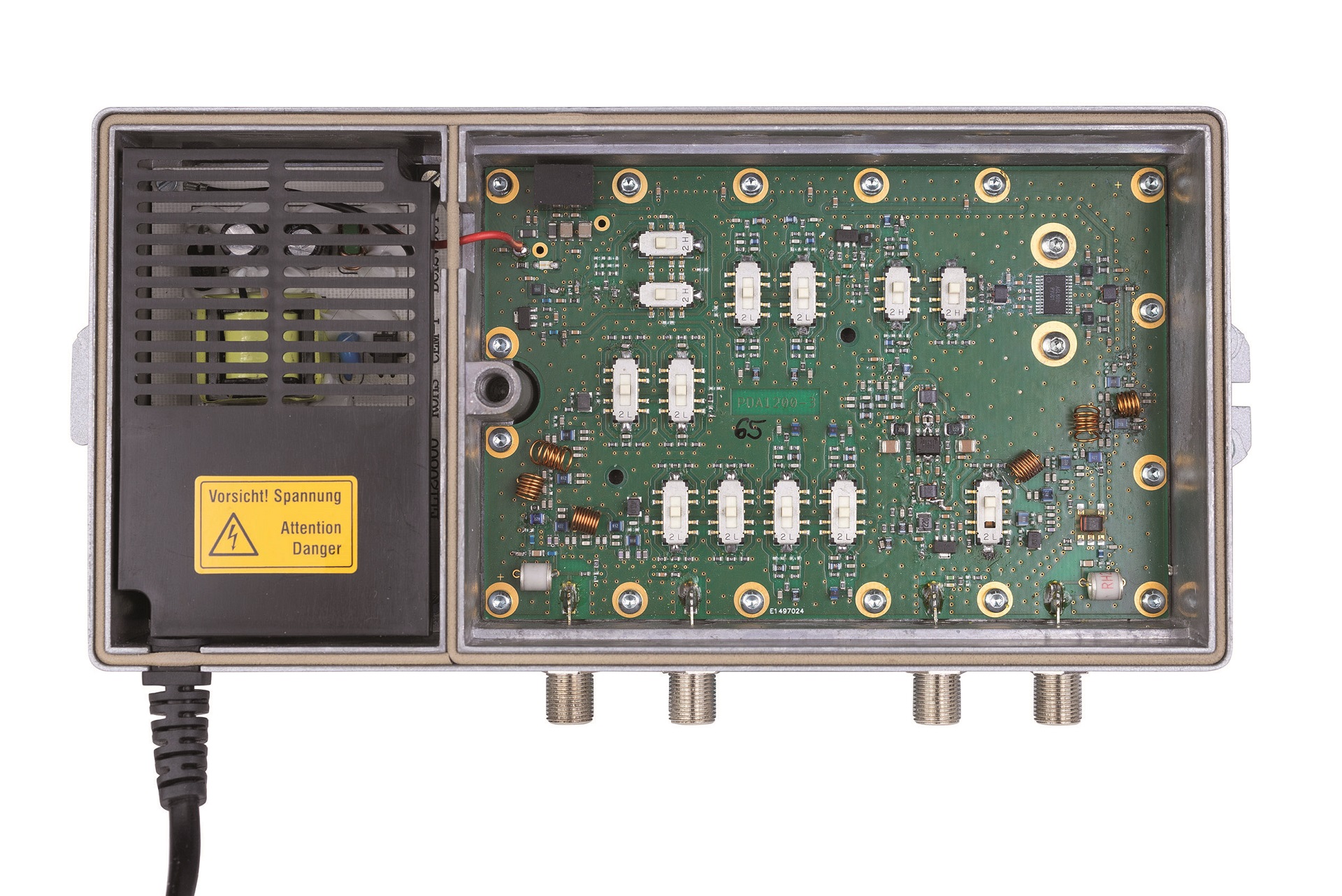

| Opis: | POLYTRON 1,2 GHz-Amplifier HN 30/40127 The amplifiers have a wide frequency range of 5...1218 MHz. This makes them ideal for use in distribution networks with data services and fully compatible with DOCSIS 3.1. The configuration is seamlessly adjusted in both the upstream and downstream via slide switches and can be easily performed on-site without the need for additional accessories. The gain can be selected between 30 dB and 40 dB. POLYTRON 1,2 GHz-Verstärker HN 30/40127 Broadband amplifier up to 1218 MHz DOCSIS 3.1 compatible Gain switchable 30/40 dB in downstream Version with and without return path available Configuration via DIP switch Measuring sockets at input and output ? View article in the POLYTRON online shop ? Operating instructions Technische Daten / Technical data Typ / Type HN 30/40127 N HN 30/40127 N/R65 HN 30/40127 N/R204 Artikel-Nr. / Article no. 1452630 1452620 1452622 Downstream Frequenzbereich / Frequency range 5 ... 1218 MHz 85 ... 1218 MHz 258 ... 1218 MHz Verstärkung / Gain 30/40 dB (switchable) Pegelsteller / Attenuator 0 ... 16 dB (2 dB steps) Entzerrer / Equalizer 0 ... 16 dB (2 dB steps) Interstage Entzerrer / Equalizer 0/6 dB Interstage Dämpfer / Attenuator 0/6 dB Rauschmaß / Noise figure typ. 7 dB Ausgangspegel / Output level (full digital load flat) 107 dBµV Upstream Frequenzbereich / Frequency range / 5 ... 65 MHz 5 ... 204 MHz Verstärkung / Gain / 30 dB Pegelsteller / Attenuator (2 dB steps) / 0 ... 16 dB Entzerrer / Equalizer (2 dB steps) / 0 ... 16 dB Ausgangspegel / Output level (full digital load flat) / max. 108 dBµV Ingress Control Switch 0 /6/50 dB Netzteil / Power supply Spannungsversorgung / Operating voltage 100 ... 240 VAC, 50/60 Hz Leistungsaufnahme / Power consumption 14 W Abmessungen (B x H x T) / Dimensions (W x H x D) 240 x 105 x 60 mm (IP65) |
