Kataloški broj:	TEOCGIGAKIT
Šifra artikla:	2005011
Barkod:	5702663105003

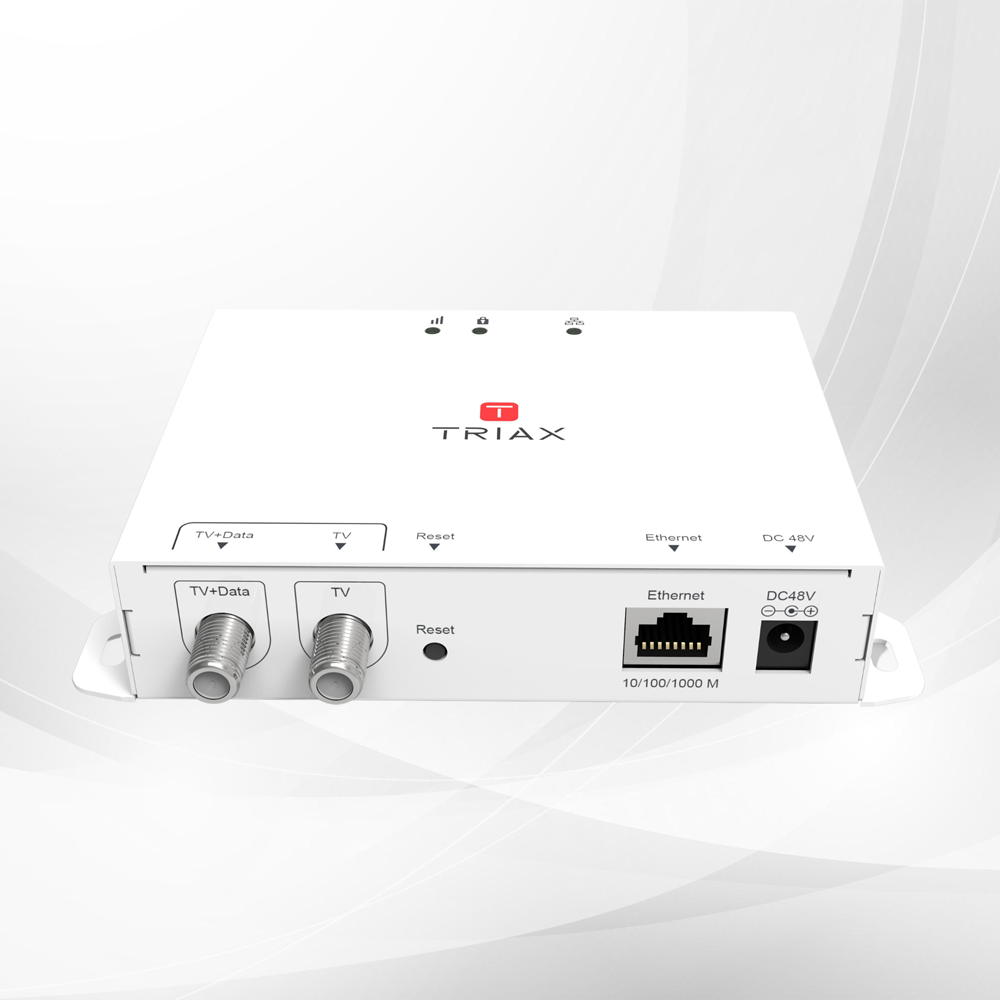

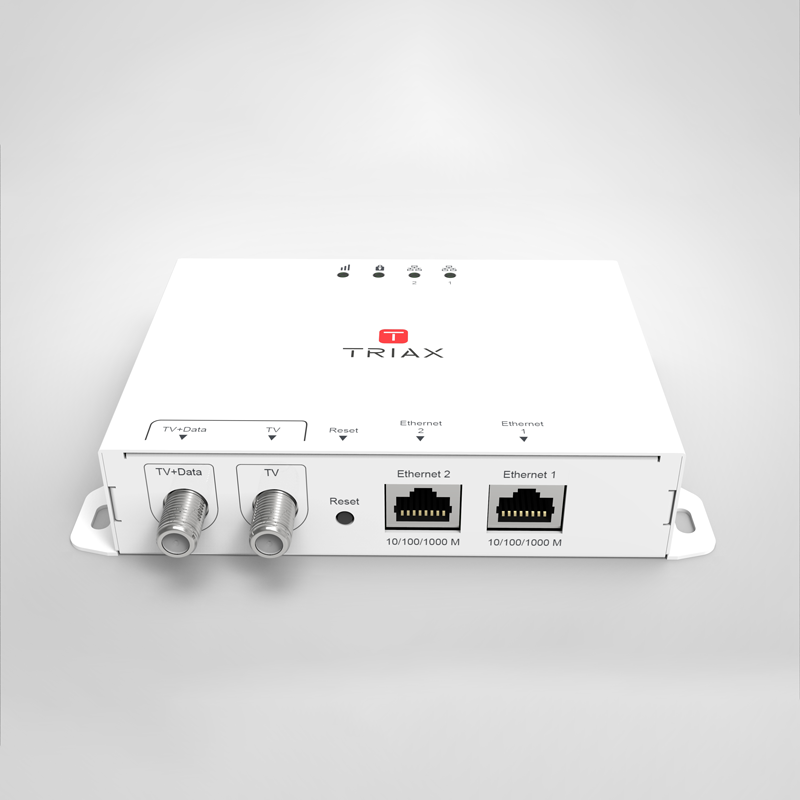

Opis:	TEoC GigaKit (310500) Extends TV signal, data, and power over a coaxial cable High speed data transmission Use existing coaxial cable Co-exist with TV signal Easy installation Technical Specifications FREQUENCY RANGE Frequency Range G.hn \| MHz 2...200 MHz Frequency Range TV \| MHz 230...1000 MHz INSERTION LOSS Insertion Loss TV \| dB <4.0 dB Insertion Loss EoC \| dB <4.0 dB RETURN LOSS Return Loss G.hn \| dB >7.5 dB Return Loss TV \| dB >7.5 dB ELECTRICAL Impedance \| 75 ohm OPERATIONAL Ethernet Interface 10/100/1000 Mbps G.hn Standard G.hn Wave 2 ITU-T G.9960/G.9961/G.9962 G.hn over Coax AC Supply Voltage 100…240 @50/60Hz VAC Power Consumption (typ.) \| W 8.0W DC Operating voltage \| VDC 48VDC@0.33A Temperature - operating \| °C 0...40 °C Temperature - storage \| °C -10...70 °C Humidity - operating \| % 10...95 % Humidity - storage \| % 10...95 % CONNECTORS Connector RF F-Type Connector Connector LAN RJ45 Connector DC DC jack (Controller) or F-Type Connector (Receiver) MECHANICAL Dimensions product (H x D x W) \| mm 31 x 98 x 151 mm Net Weight \| kg 0.310 kg (1pcs)

Kategorije

Ethernet preko Coax mreže Gigabit Kit (Point to Point)
