Kataloški broj:	DABPLUS
Šifra artikla:	0101013
Barkod:	8016978109623

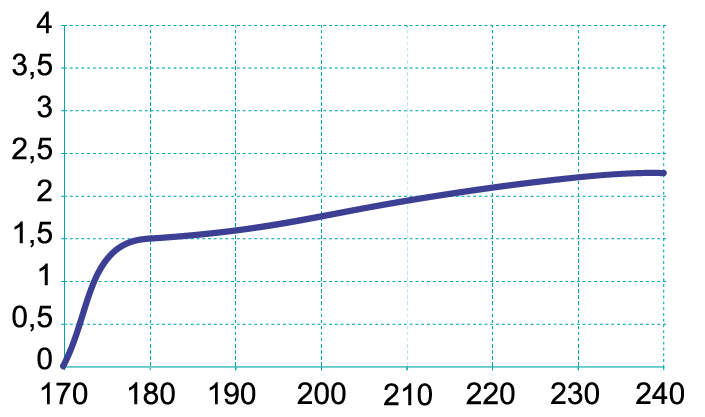

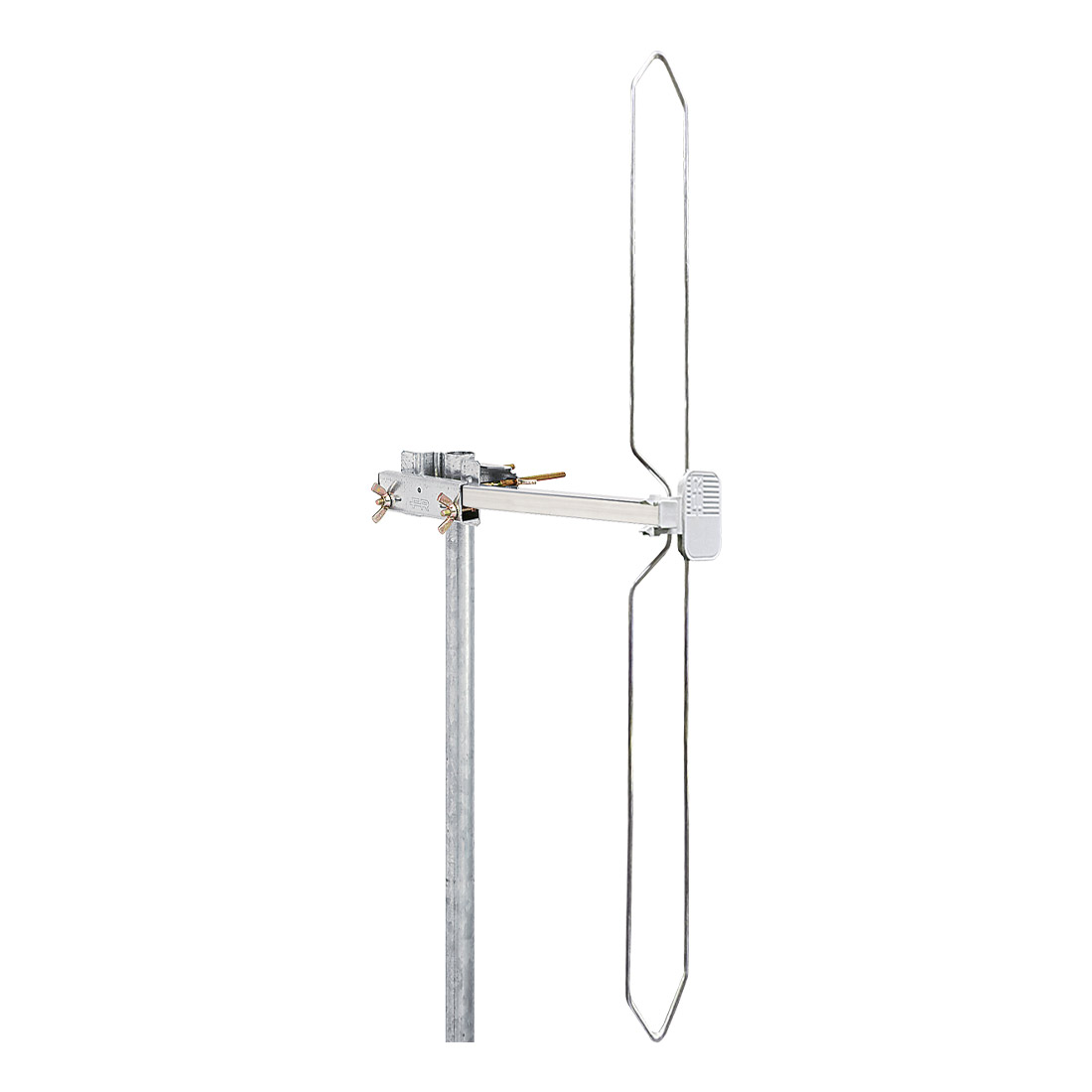

Opis:	DAB+ band (174-240MHz) aerial complete with F connector. Different design for the digital radio signals reception. Elements 1 Band DAB Channel DAB Bandwidth MHz 174-240 Gain dBi 2.1 Front/Back ratio dB Omni Return loss dB -16 Beam width (3dB) ° 360 Wind load 120km/h 729N/m2 kg (N) 2.0 (19.6) Connector F Impedence Ohm 75 Max mast diameter mm 60 Dimensions cm 59 x 8 Accessories Horizontal polarisation Included Horizontal polarisation tilt adjustment - Vertical polarisation - Auxiliary boom - Dimensions and packaging Packing Accessories single in plastic bag Pieces 4 EAN code 8016978109623 Multiple EAN 8016978109753 Packaging dimensions mm 180 x 120 x 620 Packaging weight kg 2.2 Unit weight kg 0.54 Total weight kg 2.2

Kategorije

Radijska DAB antena 174-240MHz, g=2.1dB
