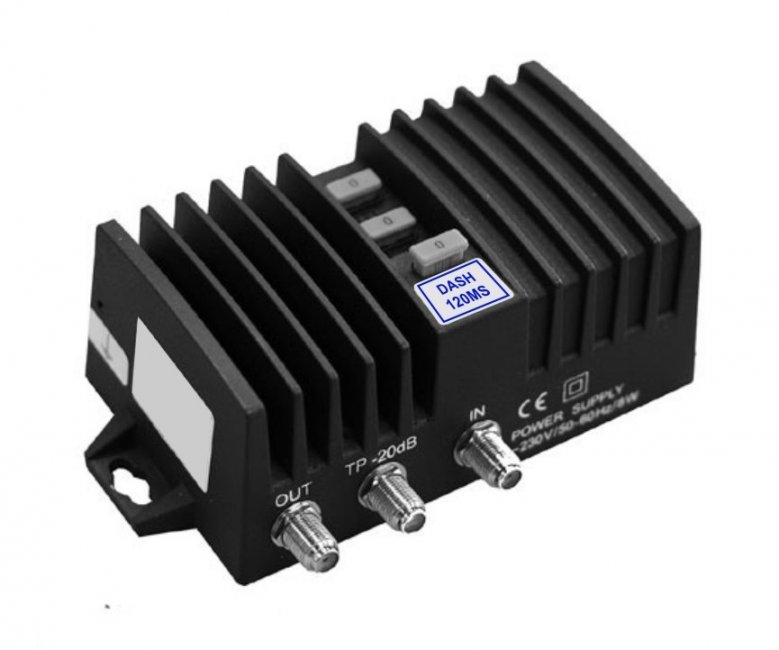

Distribucijsko pojačalo 35dB/120dBµV/230Vac sa JXP regulacijom
Distribucijsko pojačalo 35dB/120dBµV/230Vac sa JXP regulacijom
Kataloški broj: DASH120AMS
Dostupnost:
174,61 €
U cijenu je uključen PDV
| Kataloški broj: | DASH120AMS |
| Šifra artikla: | 0404079 |
| Barkod: | 1000000021462 |
| Opis: | The new DASH 120 series amplifiers were designed, considering the requirements of modern cable operators looking for a best quality of transmitted signal at a reasonable cost of investment. The availability of wide regulation level enables the use of the amplifier in house networks of various sizes. It provides best quality of signal and flat characteristics. Highly reliable power supplier and premium overvoltage protection guaranties continuous operation. In addition, the possibility of local or remote power supply ensures wide range of its applications. It is prepared for different band split configurations and can be adapted to even more. The amplifier uses typical JXP plug-ins, allowing to minimize the diversity of needed control devices. The DASH 120 broadband amplifiers are designed for indoor installation only High output level: 120 dBµV 1.2 GHz frequency range Designed for DOCSIS 3.1/3.0 Easy configuration Active or passive return path Input/ Output triple overvoltage protection 6kV Surge protection Ingress filter (switchable) Locally or remotely powered depending on version High heat dissipation and shock resistant metal housing Compact dimensions PARAMETERS DASH 120 xxS FORWARD PATH Frequency range MHz 85,105…1218 Gain dB 34 ±1 Flatness dB ±0,75 Max. output level (DIN 45004B) dBµV 120 Max. output level CENELEC 42, slope 9dB, CTB, CSO ? -60dBc dBµV 107 Input attenuator dB JXP plug-in: 0…20, step 1 Input equalizer dB JXP plug-in: 0…20, step 1 Test point dB -20 ±1 Noise figure dB < 4,5 Return loss at all inputs / outputs: - in the frequency range of 5-40MHz - in the frequency range of 40-1006MHz dB 18 ?18@ 40MHz – 1,5 / okt. RETURN PATH Frequency range MHz 5…65,85 Type of return path/ attenuation dB active/ JXP plug in:0…20, step 1 Gain dB 20 ±1 (active); -2 (passive) Flatness dB ±1 Max. output level (DIN 45004B) dBµV 117 Output attenuator dB JXP plug-in: 0…20, step 1 Ingress filter MHz <17 Noise figure dB <6,5 OTHERS Operating voltage VAC / Hz 195…253 / 50-60 (local) Power consumption W <6,2 Connectors / F Protection class / IP40 Operating temperature C -20…+60 Surge protection kV 6 Weight kg 0,7 Dimensions mm 155x80x53 Package / box |
