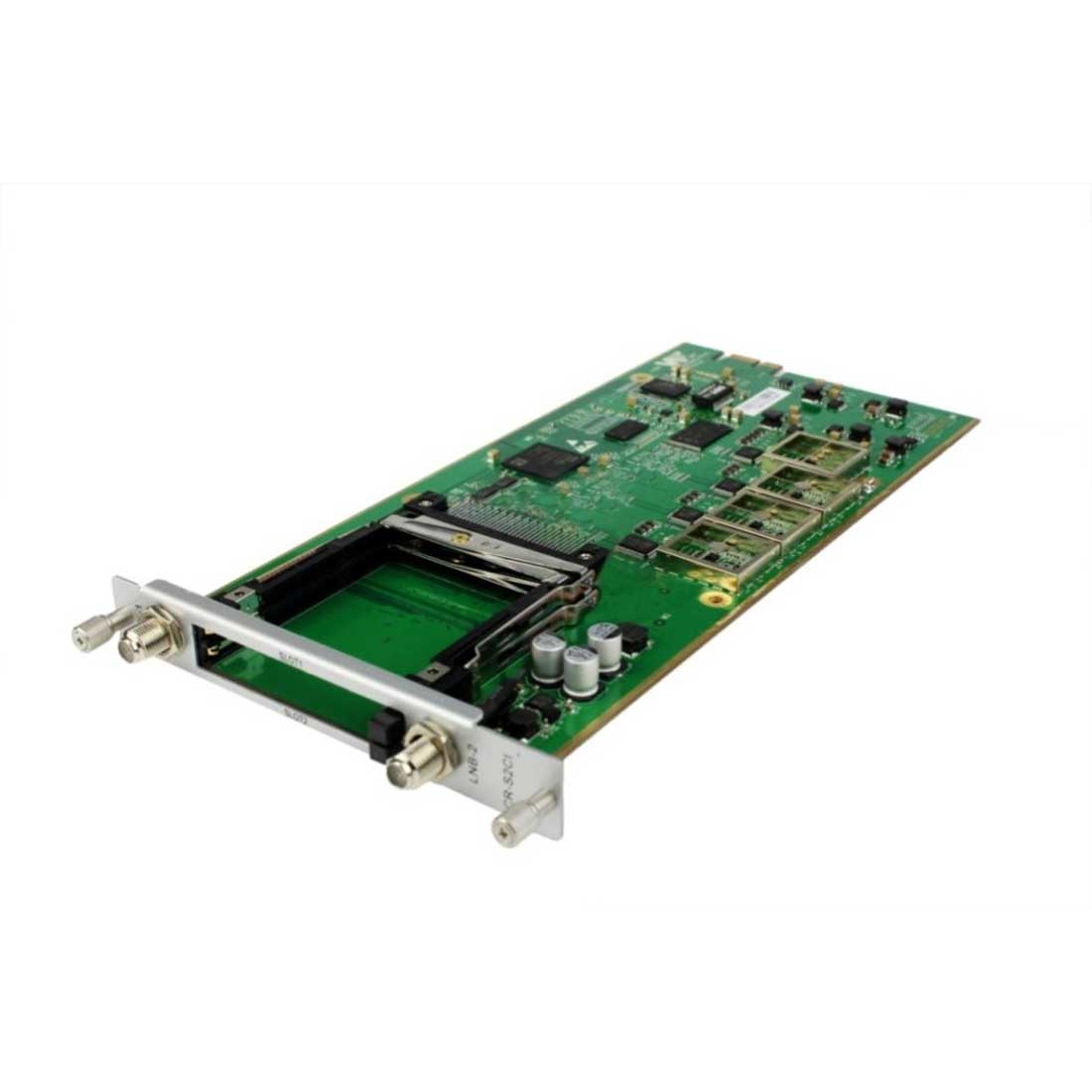

Ulazni demodulator za 4xDVB-S/S2/S2X CI signal Galaxia stanice
Kataloški broj: GX4S2CIBP01
Dostupnost:
1.526,04 €
U cijenu je uključen PDV
| Kataloški broj: | GX4S2CIBP01 |
| Šifra artikla: | 0608075 |
| Barkod: | 1000000018820 |
| Atribut 1: | Moduli za stanicu Galaxia Fracarro |
| Opis: | SAT receivers GX-4S2CI-BP-01 module is equipped with two RF coaxial Satellite inputs and two PCMCIA Common Interface slots. The module is able to tune up to four DVB-S/S2/S2X satellite transponders (two transponders for every single RF coaxial input), decrypt the scrambled programs through the C.I. slots and share and pool the contents to the GALAXIA main chassis. Technical chars 4x DVB-S/S2/S2X RF inputs (FTA) Independent power supply for each SAT input “Hot-swappable” module WEB interface based headend: the module is managed through a friendly user HTML web interface to set every single parameter 2 Slot CI GX-4S2CI-BP-01 Code 287637 Inputs Input no. 4 Front-end Input no. 4 Input band MHz 950-2150 Input level dBµV 38-88 LNB controls DiSEqC 1.0 Remote feeding mA 400 max (14/18V) Demodulators DVB-S: QPSK, 8PSK DVB-S2: QPSK, 8PSK, 16APSK, 32APSK DVB-S2X: QPSK, 8PSK, 16APSK, 32APSK, 64APSK FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X: 11/15, 7/9, 4/5, 5/6 (Normal FEC FECFRAME) Symbol rate MS/s DVB-S: 1~45 DVB-S2: 1~45 DVB-S2X: 1~34 General features Connectors 2x F-female (RF) Power Consumption W 22 Common interface 2 x PCMCIA (Standard EN50221, TS10169) Flex CAM or Standard Mode Dimensions mm 270x115x20 Working temperature °C -5 ÷ 50 |
