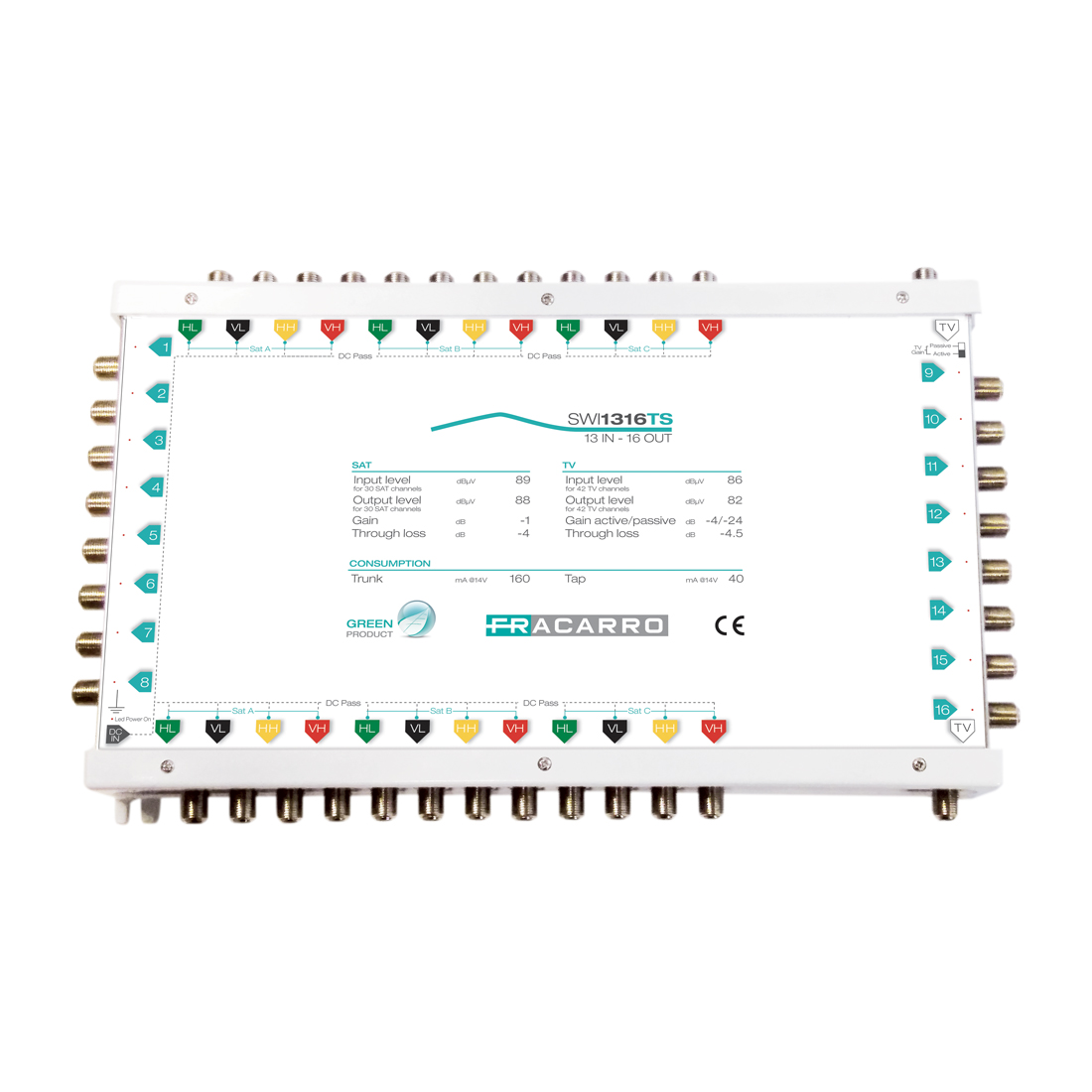

Kaskadni multiswitch, 12xMF/1xZEM. 16 izlaza, aktivni/pasivni
Kataloški broj: SWI1316TS
Dostupnost:
370,14 €
U cijenu je uključen PDV
| Kataloški broj: | SWI1316TS |
| Šifra artikla: | 0504268 |
| Barkod: | 8016978097159 |
| Opis: | 13 Inputs 13-input cascadable multiswitch with 16 output taps; dip switch to select active and passive TV gain. Technical chars Satellite band up to 2300MHz. High output level to cover long cable distances(60m with 6.7mm cable). Each port has an LED to show correct reception of DiSEqC commands. Return channel included when TV gain is passive (5-65MHz). When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs. PSU1340TS external power supply (13V, 4A) with Male Jack connector (2.1x5.5x12; inside positive, outside negative) not included in the package; to optimise installation space and reduce maintenance time. Small size due to matrix switching system, with connectors on both sides. Easy to install due to standard input colouring SWI1316TS Code 287367 Inputs 12 SAT, 1 TV Outputs 12 SAT, 1 TV Taps 16 SAT Bandwidth MHz 950-2300 Gain dB -5/-1 Max Output level dBµV 100 Insertion loss dB -1/-5 TV TV bandwidth MHz Active TV: 47-862; Passive TV: 5-862 Gain (Active) dB -4 Gain (Passive) dB -24 Max Output level dBµV Active: 95 Insertion loss dB -4/-5 Return path Bandwidth MHz TV passivo: 5-65 Consumption Tap mA 50 Current consumption mA Active TV: 160@13V; Passive TV: entirely fed by the receiver Maximum power supply current SAT mA Passive TV: 4000; Active TV: 3840 Features Dimensions mm 190x310x40 Working temperature °C -10÷+55 SAT-SAT Isolation dB >30 Dimensions and packaging Pcs 1 EAN code 8016978097159 Packaging dimensions mm - LxWxH 330 x 245 x 50 Packaging weight Kg 1.2 |
