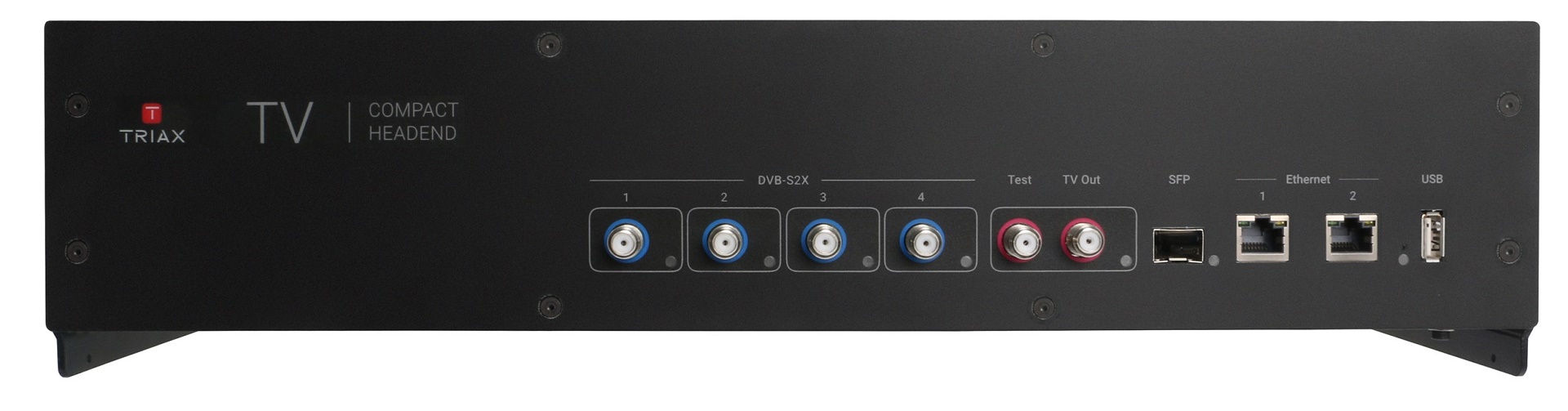

Kompaktna digitalna stanica Triax 16x DVB-S2X na 16x QAM
Kompaktna digitalna stanica Triax 16x DVB-S2X na 16x QAM
Kataloški broj: TDCH16SQ
Dostupnost:
6.056,53 €
U cijenu je uključen PDV
| Kataloški broj: | TDCH16SQ |
| Šifra artikla: | 0601053 |
| Barkod: | 5702664927901 |
| Opis: | TDcH Compact Headend – free to air DVB-S and DVB-S2 conversion to QAM. Built for both wall mounting and 19” racks and equipped with 4 DVB-S/S2 inputs, 16 DVB-S2X tuners and 16 QAM modulators. The TDcH compact headend is optimised and engineered to meet specific TV distribution requirements in hospitality, multi-dwelling units and related sectors with an appealing, competitive cost per service ratio. Our brand new, intuitive platform smoothly integrates easy installation, an elegant graphical user interface, central decryption, remote access, and straightforward TV service updates with LCN. Features - 4 x SAT IF inputs with integrated multiswitch - 16 x DVB-S2 tuners - 16 x QAM full band modulators - Electronically adjustable output level - Suitable for adjacent channels - Symbol rates and modulation individually adjustable - Transport Stream Processing: - Network Information Table (NIT) for complete head-end station - LCN (Logical Channel Numbering) - Service Filtering with the option for - Remove unwanted services - Remove services for minimize data rate - HTML user interface via self-signed HTTPS CHARACTERISTICS Demodulator Type DVB-S2X Demodulator Symbolrate 1...45 Msym/s Input level 44 – 90 dBµV dBµV LNB current max. 400 mA Output Type QAM Output QAM Modes 16, 32, 64, 128, 256 Output level adjustment 10 dB Output Level System 95 dBµV Output symbol rate 3,5...7,2 Mbit/s MER >43 dB Cable - symbol rate 3.5...7.2 Mbit/s Demodulator Viterbi Decoder 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually DVB-S2 Modes (8PSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 DVB-S2 Modes (QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S Modes (QPSK) 1/2, 2/3, 3/4, 5/6, 7/8 LNB band selection DiSEqC 1.0 Control 13/18VDC and 22kHz Max. Output level (@ full dig. load) 95 dBµV Modulation scheme QAM 16, 32, 64, 128, 256 Number of converted transponders 16 Output channel S 21 – C 69 Output level 85...95 dBµV Satellite - demodulation QPSK; 8PSK Satellite transponders 16 Symbol rate DVB-S (QPSK) 1...45 Mbit/s Symbol rate DVB-S2 (8PSK) 4.5...45 Mbit/s Symbol rate DVB-S2 (QPSK) 4.5...45 Mbit/s Viterbi decoder 1/2; 2/3; 3/4; 5/6; 7/8; automatically / manually Test Point -20 dB Transport stream chip set prepared but not supported with SW1.0 FREQUENCY Output frequency range 306...862 MHz Channel Raster 8 MHz Channels S 21 – C 69 Number of channels 16 channels in a row, single channel can be switched off Satellite - frequency range 950...2150 MHz RETURN LOSS Output Return Loss >10 dB Return loss SAT inputs > 10 dB ELECTRICAL Impedance 75 ? Number of RF outputs 1 OPERATIONAL AC Supply voltage 100...264 VAC Power Consumption (typ.) typ. 35 max 90 W Data rate 83 Mbit/s Ethernet Interface 2 x 1000 Base-T (RJ 45) DC Supply Voltage 5 VDC Temperature - operating -10...+50 °C CONNECTORS Number of inputs 4 Connector IN F connector Input Type SAT-IF Connector - SFP cage 1 x 1000 Base-T (SFP) Connector USB USB 2.0, Type A con (Data transfer, additional storage, …) Output connectors (for RF) 1 x F connector, 75 Ohm Connector SAT-IF 4 x F connector, 75 Ohm, 400 mA per input LNB power feed SFP cage 1 x 1000 Base-T (SFP) MECHANICAL Dimensions product (H x D x W) 90 x 220 x 430 mm Clips/Grounding strap Ground clamp 19" Rack mount 2 HE,U Packing QTY 1 Packaging Height 0,120 m Packaging Width 0,495 m Packaging Depth 0,255 m Packaging Volume 0,015 m3 Net Weight 3,770 kg Tara Weight 0,970 kg Total Weight 4,740 kg |
